91101-T

PRINT MAIL

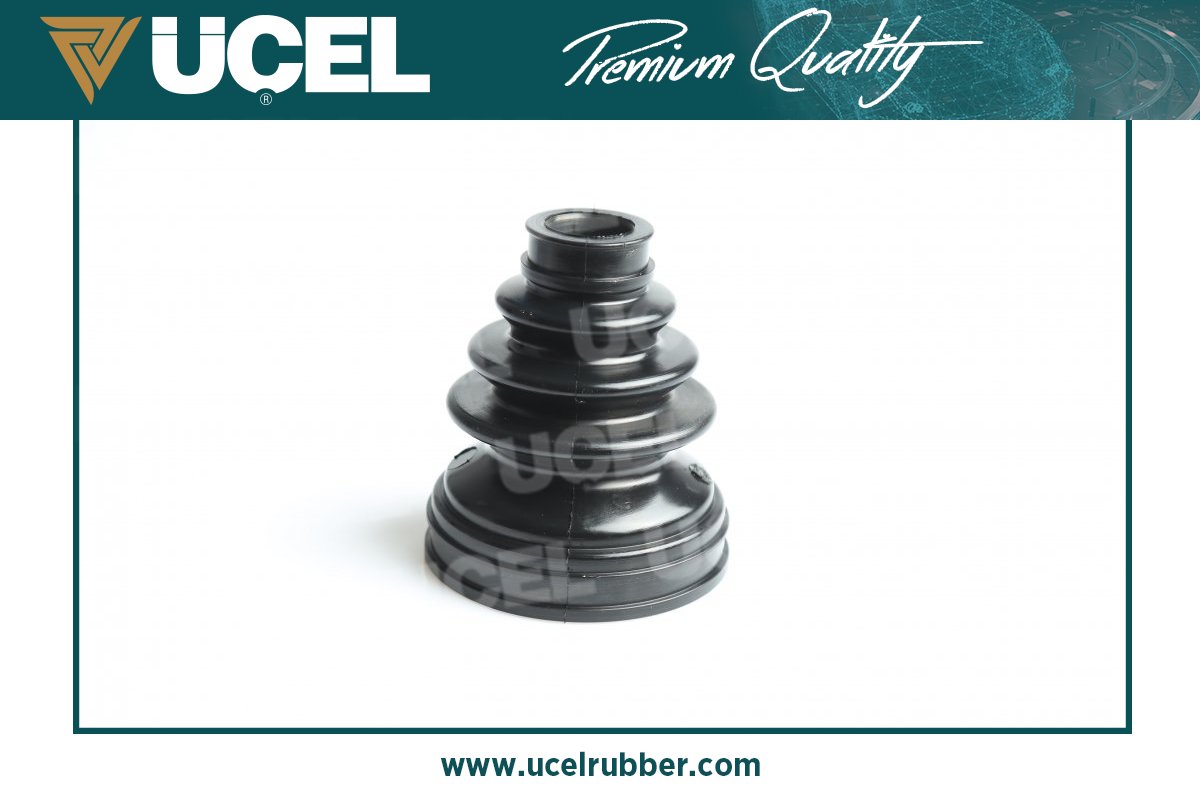

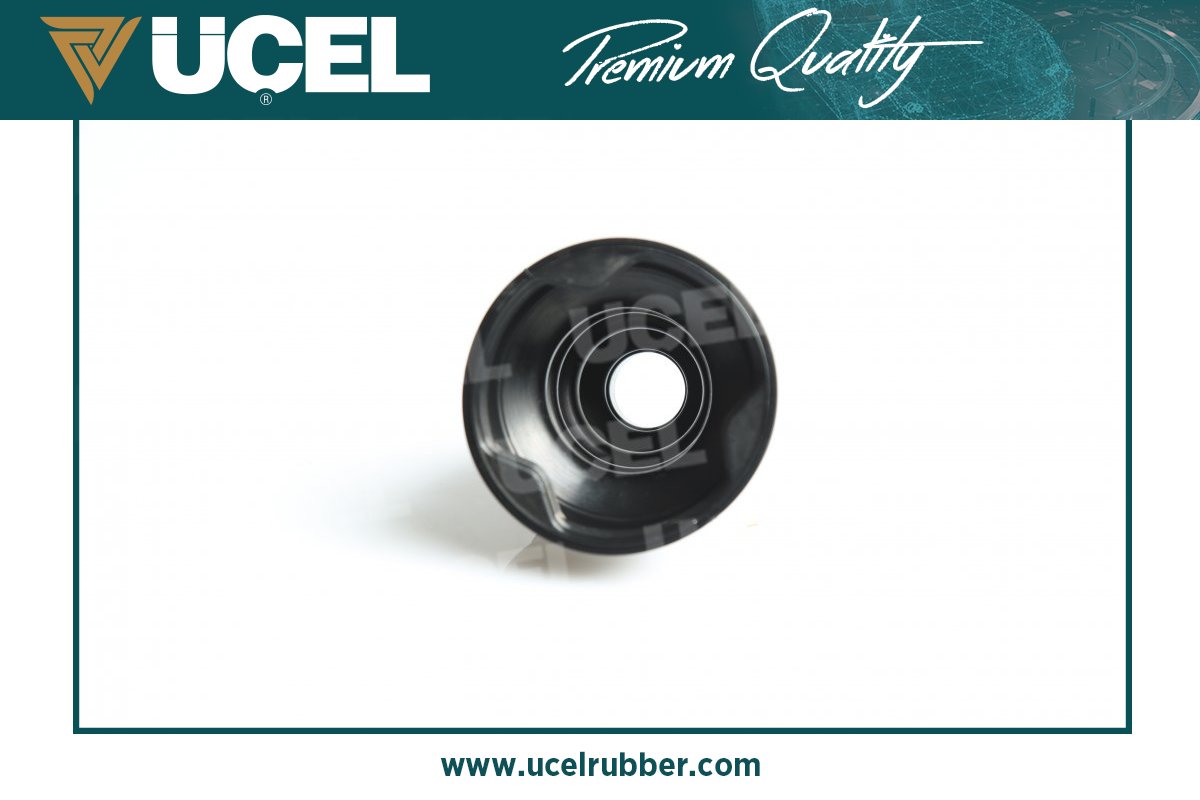

AXLE BELLOW (IN) (BOOT ONLY) 1603004

Axle Bellows

Net Weight : 82 gr.
Inner Diameter 1 [Mm] : 22
Inner Diameter 2 [Mm] : 65.3
Joint Type : Tripot Joint
Height [Mm] : 94.2
Barcode : 8683716961012

OE NUMBER
26073421	GENERAL MOTORS VAUXHALL
26094870	GENERAL MOTORS VAUXHALL
1603004	OPEL
1603230	OPEL

Adaptive Vehicle Models -

Show All

MANUFACTURER	MODEL	MODEL SERIES	MOTOR TYPE	DISPLACEMENT	MODEL YEAR FROM	MODEL YEAR TO	BODY TYPE	DRIVE TYPE	ENGINE TYPE	TYPE	KW	HP	CYLINDER	VALVE
OPEL	COMBO	COMBO Kasa/büyük limuzin	1.6 CNG 16V	1598	2006-06		Kasa/Büyük Limuzin \| Cargo	Önden tahrik \| AllGrip		Z 16 YNG	69	94	4	16
OPEL	COMBO	COMBO Kasa/büyük limuzin	1.6 CNG 16V	1598	2005-04		Kasa/Büyük Limuzin \| Cargo	Önden tahrik \| AllGrip		Z 16 YNG	69	94	4	16
OPEL	COMBO	COMBO Kasa/büyük limuzin	1.7 DI 16V	1686	2001-10		Kasa/Büyük Limuzin \| Cargo	Önden tahrik \| AllGrip	Dizel	Y 17 DTL	48	65	4	16
OPEL	COMBO	COMBO Tour	1.3 CC	1598	2001-10	2006-09	Mpv \| Tour / Life	Önden tahrik \| AllGrip	Benzin	Z 16 SE	62	84	4	8
OPEL	COMBO	COMBO Tour	1.3 CC	1364	2004-10	2011-12	Mpv \| Tour / Life	Önden tahrik \| AllGrip	Benzin	Z 14 XEP	66	90	4	16
OPEL	COMBO	COMBO Tour	1.6 CNG	1598	2006-06	2011-12	Mpv \| Tour / Life	Önden tahrik \| AllGrip		Z 16 YNG	69	94	4	16
OPEL	COMBO	COMBO Tour	1.6 CNG	1598	2005-04	2011-01	Mpv \| Tour / Life	Önden tahrik \| AllGrip		Z 16 YNG	69	94	4	16
OPEL	COMBO	COMBO Kasa/büyük limuzin	1.3 CC	1598	2001-10		Kasa/Büyük Limuzin \| Cargo	Önden tahrik \| AllGrip	Benzin	Z 16 SE	62	84	4	8
OPEL	COMBO	COMBO Tour	1.7 DI 16V	1686	2001-10	2004-06	Mpv \| Tour / Life	Önden tahrik \| AllGrip	Dizel	Y 17 DTL	48	65	4	16
OPEL	COMBO	COMBO Kasa/büyük limuzin	1.4 16V	1364	2005-08		Kasa/Büyük Limuzin \| Cargo	Önden tahrik \| AllGrip	Benzin	Z 14 XEP	66	90	4	16
OPEL	CORSA C	CORSA C (X01)	1.2 (F08, F68)	1199	2000-09	2009-12	Hatchback \| Compact	Önden tahrik \| AllGrip	Benzin	Z 12 XE	55	75	4	16
OPEL	CORSA C	CORSA C (X01)	1.2 Twinport (F08, F68)	1229	2004-07	2009-12	Hatchback \| Compact	Önden tahrik \| AllGrip	Benzin	Z 12 XEP	55	75	4	16
OPEL	CORSA C	CORSA C (X01)	1.0 (F08, F68)	998	2003-06	2009-12	Hatchback \| Compact	Önden tahrik \| AllGrip	Benzin	Z 10 XEP	44	60	3	12
OPEL	CORSA C	CORSA C (X01)	1.4 (F08, F68)	1389	2000-09	2009-12	Hatchback \| Compact	Önden tahrik \| AllGrip	Benzin	Z 14 XE (09.00-.)	66	90	4	16
OPEL	CORSA C	CORSA C Kasa/eğik arka (X01)	1.2 (F08, W5L)	1229	2005-07	2006-06	Kasa/Eğik Arka \| Van	Önden tahrik \| AllGrip	Benzin	Z 12 XEP	55	75	4	16
OPEL	CORSA C	CORSA C (X01)	1.4 Twinport (F08, F68)	1364	2003-06	2009-12	Hatchback \| Compact	Önden tahrik \| AllGrip	Benzin	Z 14 XEP	66	90	4	16
OPEL	CORSA C	CORSA C Kasa/eğik arka (X01)	1.2 16V (F08, W5L)	1199	2000-09	2003-07	Kasa/Eğik Arka \| Van	Önden tahrik \| AllGrip	Benzin	Z 12 XE	55	75	4	16
OPEL	CORSA C	CORSA C Kasa/eğik arka (X01)	1.4 (W5L, F08)	1364	2003-08	2012-06	Kasa/Eğik Arka \| Van	Önden tahrik \| AllGrip	Benzin	Z 14 XEP	66	90	4	16
OPEL	CORSA C	CORSA C (X01)	1.3 CDTI (F08, F68)	1248	2003-06	2009-12	Hatchback \| Compact	Önden tahrik \| AllGrip	Dizel	Z 13 DT	51	70	4	16
OPEL	CORSA C	CORSA C (X01)	1.7 DI (F08, F68)	1686	2000-09	2009-12	Hatchback \| Compact	Önden tahrik \| AllGrip	Dizel	Y 17 DTL	48	65	4	16
OPEL	CORSA C	CORSA C (X01)	1.7 DTI (F08, F68)	1686	2000-09	2009-12	Hatchback \| Compact	Önden tahrik \| AllGrip	Dizel	Y 17 DT	55	75	4	16
OPEL	CORSA C	CORSA C Kasa/eğik arka (X01)	1.3 CDTI 16V (F08, W5L)	1248	2005-07	2006-06	Kasa/Eğik Arka \| Van	Önden tahrik \| AllGrip	Dizel	Z 13 DT	51	70	4	16
OPEL	CORSA C	CORSA C Kasa/eğik arka (X01)	1.7 DI 16V (F08, W5L)	1686	2000-09	2003-07	Kasa/Eğik Arka \| Van	Önden tahrik \| AllGrip	Dizel	Y 17 DTL	48	65	4	16
OPEL	CORSA C	CORSA C (X01)	1.0 (F08, F68)	973	2000-09	2003-06	Hatchback \| Compact	Önden tahrik \| AllGrip	Benzin	Z 10 XE	43	58	3	12
OPEL	CORSA C	CORSA C Kasa/eğik arka (X01)	1.7 DTI 16V (F08, W5L)	1686	2000-09	2003-07	Kasa/Eğik Arka \| Van	Önden tahrik \| AllGrip	Dizel	Y 17 DT	55	75	4	16
OPEL	MERIVA	MERIVA A MPV (X03)	1.4 16V Twinport LPG (E75)	1364	2004-07	2010-05	Mpv \| Tour / Life	Önden tahrik \| AllGrip	Benzin	Z 14 XEP	66	90	4	16
OPEL	MERIVA	MERIVA A MPV (X03)	1.6 (E75)	1598	2003-05	2010-05	Mpv \| Tour / Life	Önden tahrik \| AllGrip	Benzin	Z 16 SE	62	84	4	8
OPEL	MERIVA	MERIVA A MPV (X03)	1.6 16V (E75)	1598	2003-05	2006-01	Mpv \| Tour / Life	Önden tahrik \| AllGrip	Benzin	Z 16 XE (09.00-.)	74	101	4	16
OPEL	MERIVA	MERIVA A MPV (X03)	1.4 16V Twinport (E75)	1364	2004-07	2010-05	Mpv \| Tour / Life	Önden tahrik \| AllGrip	Benzin	Z 14 XEP	66	90	4	16
OPEL	MERIVA	MERIVA A MPV (X03)	1.6 (E75)	1598	2006-01	2010-05	Mpv \| Tour / Life	Önden tahrik \| AllGrip	Benzin	Z 16 XEP	74	101	4	16
OPEL	TIGRA	TIGRA TwinTop (X04)	1.3 CDTI (R97)	1248	2004-06	2010-12	Cabrio \| Drophead Coupe	Önden tahrik \| AllGrip	Dizel	Z 13 DT	51	70	4	16
OPEL	TIGRA	TIGRA TwinTop (X04)	1.4 (R97)	1364	2004-06	2010-12	Cabrio \| Drophead Coupe	Önden tahrik \| AllGrip	Benzin	Z 14 XEP	66	90	4	16
